当前，新能源汽车行业正向高功率快充、高集成、高安全化方向快速演进，对充电配套结构件的综合性能与集成适配能力提出了更高要求。在此背景下，传统充电座性能局限性凸显，在安全可靠性、环境适应性、轻量化及量产适配性等方面存在诸多短板，难以适配行业智能化、标准化的发展趋势，成为制约充电系统高品质落地的关键瓶颈。
Against the backdrop of the rapid evolution of the new energy vehicle industry toward high-power fast charging, high integration and enhanced safety, higher requirements have been placed on the comprehensive performance and integration adaptability of charging structural components. Under such circumstances, traditional charging sockets are plagued by inherent performance limitations. Suffering from numerous shortcomings in safety reliability, environmental adaptability, lightweight design and mass-production compatibility, they fail to keep pace with the intelligent and standardized development trends of the industry, emerging as a critical bottleneck restricting the high-quality implementation of charging systems.
为精准破解行业现存难题，适配新能源行业技术规范与产品升级需求，瑞可达重磅推出SMC（Smart Modular Charging）系列充电座，助力整车及充电设备实现安全升级、集成优化与全生命周期降本增效。
To effectively tackle prevailing industry challenges and align with technical specifications and product upgrading demands of the new energy sector, Recodeal proudly launches the SMC (Smart Modular Charging) series charging sockets, enabling vehicle manufacturers and charging equipment suppliers to achieve safety enhancement, integration optimization as well as cost reduction and efficiency improvement across the full product lifecycle.

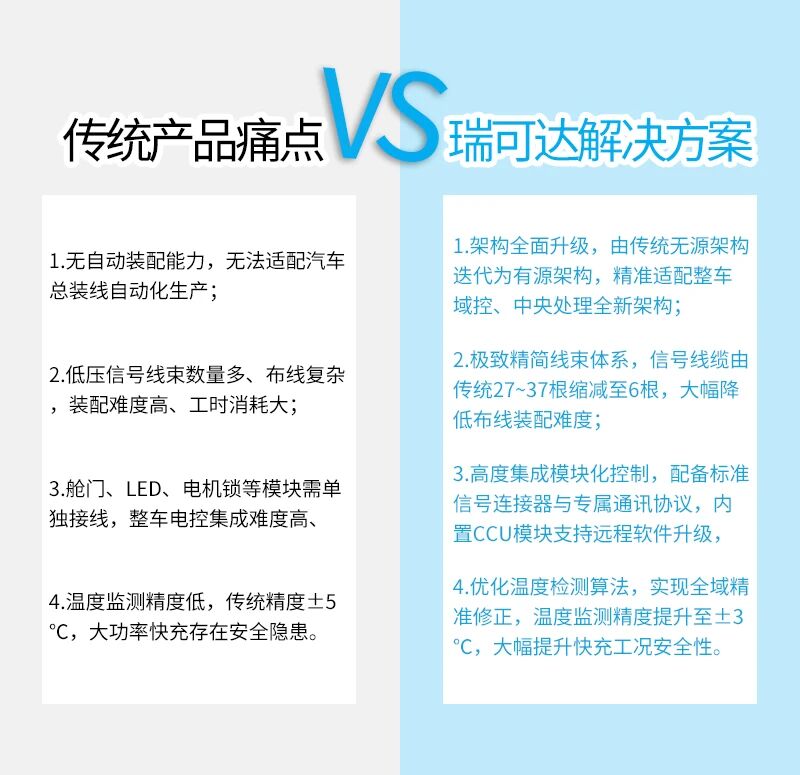

Pain Points of Conventional Products:
Lacking support for automatic assembly, incompatible with automated production on vehicle general assembly lines.
Numerous low-voltage signal wires lead to complicated wiring, resulting in difficult assembly and high labor-hour consumption.
Separate wiring is required for modules such as charging hatches, LED indicators and motor locks. This brings high integration difficulty to vehicle electronic control, occupies abundant IO resources and raises R&D costs.
Low precision of temperature monitoring with conventional accuracy of only ±5°C, triggering potential safety risks under high-power fast charging.
Recodeal SMC Series Solution:
Featuring comprehensive architectural upgrade from conventional passive architecture to active architecture, it perfectly adapts to new vehicle architectures including vehicle domain control and central processing, and supports automated vehicle assembly operations.
It delivers an extremely streamlined wiring system: the number of signal cables is reduced from the traditional 27~37 to only 6, significantly lowering wiring and assembly difficulties.
With highly integrated modular control, it is equipped with standard signal connectors and dedicated communication protocols. The built-in CCU module supports remote software upgrades, enabling standardized charging control and interfaces and simplifying the logic of vehicle electronic control development.
Optimized temperature detection algorithms realize full-range precise correction. The temperature monitoring accuracy is improved to ±3°C, greatly enhancing safety under fast-charging operating conditions.
01
产品简介
Product introduction
SMC 系列是针对整车域控架构开发的有源集成模块化充电座，主要应用于新能源乘用车、商用车整车配套。产品采用标准模块化设计，壳体搭载阻燃工程塑料，配备快插式便捷连接结构，内置CCU充电控制单元，兼具大功率载流、自动化量产适配、高集成信号处理、环境适应性强等核心特性。产品可灵活选配高压互锁、远程升级、多色状态指示灯等功能，可定制化面板模块，适配车企多平台、多车型安装需求。
The SMC series represents actively integrated modular charging sockets developed for vehicle domain control architectures, primarily supporting complete vehicle matching for new energy passenger and commercial vehicles. Adopting a standard modular design, the product features a housing made of flame-retardant engineering plastics and a convenient quick-plug connection structure. Built-in CCU charging control unit delivers core strengths including high-current power transmission, compatibility with automated mass production, highly integrated signal processing and robust environmental adaptability. Optional functions such as high-voltage interlock, remote firmware upgrade and multi-colour status indicator lights are available. Customisable panel modules can be provided to accommodate installation requirements across multiple vehicle platforms and models for automakers.
02
产品优势
Product Advantages
架构革新，线束与整车资源极致精简
Architecture Innovation, Extreme Streamlining of Wiring Harness and Vehicle Resources
产品完成从传统无源架构到新一代有源架构的颠覆性升级，彻底重构充电座信号与控制体系。相较传统充电座27~37根信号线缆的复杂配置，SMC系列将信号线缆精简至6根，仅占用整车4个IO端口（2路CAN）。同时取消AC电机锁、舱门、LED模块全部外接控制线束，各功能模块通过板对板方式与充电座直连，大幅简化整车布线结构，降低线路故障风险。
The product achieves disruptive upgrading from the conventional passive architecture to a new-generation active architecture, thoroughly restructuring the signal and control system of charging sockets. Compared with traditional charging sockets that require complex wiring consisting of 27 to 37 signal cables, the SMC series cuts the number of signal cables down to merely 6, occupying only 4 vehicle IO ports (2 CAN channels). Meanwhile, all external control wiring for the AC motor lock, charging hatch and LED modules is eliminated. Each functional module is directly connected to the charging socket via board-to-board connections, greatly simplifying vehicle wiring layout and reducing risks of circuit failures.
CCU功能集成，简化整车电控开发
Integrated CCU Functions to Simplify Vehicle Electronic Control Development
内置CCU控制器，一站式集成八大充电核心功能，信号本地采集、逻辑本地处理：
充电接口状态检测及反馈；
舱门控制及状态反馈；
电机锁控制及状态反馈；
充电指示灯本地驱动；
AC/DC枪型自动识别、高压互锁检测；
温度实时监测、算法补偿提高采样精度；
故障快速识别、充电急停保护；
支持远程升级，功能迭代。
With an embedded CCU controller, the product integrates eight core charging functions in one solution, featuring local signal acquisition and local logic processing:
Detection and feedback of charging interface status;
Charging hatch control and status feedback;
Motor lock control and status feedback;
Local driving of charging indicator lights;
Automatic identification of AC/DC charging connector types and high-voltage interlock detection;
Real-time temperature monitoring with algorithm compensation for improved sampling accuracy;
Rapid fault identification and emergency charging stop protection;
Support for remote upgrade and function iteration.
·
·
标准模块化，适配自动化量产
Standardized Modular Design Adapted to Automated Mass Production
高压端采用快插式连接器，DC模块兼容铜线、铝排、铝棒多种接线方案；
接地螺栓与本体集成，缩紧即可完成车身接地，取消独立PE接地线；
各模块统一标准接口，外观面板可定制，一套硬件平台适配多款车型；
充电座与线束为独立总成，匹配整车自动化装配产线。
The high-voltage side adopts quick-plug connectors, and the DC module supports multiple wiring solutions including copper wires, aluminum busbars and aluminum rods;
The grounding bolt is integrated with the main body; vehicle grounding can be completed simply by tightening, removing the need for separate PE grounding cables;
All modules adopt standardized interfaces, and cosmetic panels support customization. A single hardware platform is applicable to multiple vehicle models;
The charging socket and wiring harness form independent assemblies, compatible with vehicle automated assembly production lines.
全链路降本，物料/工时/电控全面减负
Full-chain Cost Reduction: Comprehensive Burden Reduction on Materials, Working Hours and Electronic Control
物料降本：取消DC/AC信号线、电机锁/舱门/LED控制线、多组连接器、独立PE地线、线束固定钣金扎带等20余项冗余零件；
工时降本：依托工时优化实现成本压降，线束装配作业耗时有效降低，整车装配流程进一步提速；
电控降本：释放整车大量ADC、PWM IO端口，省去整车配套采集芯片，节约单车芯片成本；
Material Cost Reduction: Over 20 types of redundant components are eliminated, including DC/AC signal wires, control wires for motor locks, charging hatches and LEDs, multiple sets of connectors, independent PE grounding cables, sheet metal fasteners and cable ties for wiring harness fixation.
Working Hour Cost Reduction: Cost savings are realized via optimized working hours. The assembly time for wiring harnesses is effectively shortened, further accelerating the vehicle assembly process.
Electronic Control Cost Reduction: A large number of vehicle ADC and PWM IO ports are freed up. No additional acquisition chips are required on vehicles, cutting chip costs per vehicle.
高可靠安全防护，适配全场景快充
High-reliability Safety Protection for Full-scenario Fast Charging
实时监测CC/CP/CC1/CC2信号、端子超温、高压互锁异常，主动上报故障代码，严重故障可触发充电急停；气密、防潮、阻燃、高低温耐久全套严苛测试，可覆盖严寒、高温高湿、户外等用车场景。
Real-time monitoring is implemented for CC/CP/CC1/CC2 signals, terminal overheating and high-voltage interlock anomalies. Fault codes are actively reported, and charging emergency stop can be triggered in case of severe faults.The product has passed a full set of stringent tests including air tightness, moisture resistance, flame retardancy and high-low temperature durability, adapting to vehicle operating scenarios such as frigid environments, high temperature and humidity, and outdoor conditions.
03
产品应用
Product Applications
SMC系列充电座可覆盖乘用车、商用车等新能源车型。在保证高压电流传输稳定、安全、高效的同时，其模块化设计更完美契合了整车智能化控制与高功率快充的行业需求，是新一代高压平台的理想选择。
The SMC series charging sockets are applicable to new energy vehicles including passenger vehicles and commercial vehicles. While ensuring stable, safe and efficient high-current power transmission, its modular design perfectly meets industry demands for intelligent vehicle control and high-power fast charging, making it an ideal solution for next-generation high-voltage platforms.
创新技术引领未来
瑞可达始终坚持技术创新，聚焦行业痛点与客户需求，持续突破充电连接技术壁垒。SMC系列充电座依托架构革新、极简线束、高度集成、量产友好、极致降本、全域安全等六大核心优势，完美适配域控时代整车研发与量产需求，解决了传统充电座的多项行业难题。
面向未来，瑞可达不止于连接，更以系统性创新定义连接的品质与价值。我们致力于让每一次信号传输、每一份能量流动都极致可靠，以硬核连接赋能千行百业智能升级，共筑高质量发展新生态。
Recodeal consistently pursues technological innovation, focuses on industry pain points and customer requirements, and continuously breaks technical barriers in charging connection solutions. Featuring six core strengths — architectural innovation, minimized wiring harnesses, high integration, mass-production friendliness, maximum cost reduction and all-round safety, the SMC series charging sockets fully satisfy vehicle R&D and mass production requirements in the domain control era and address multiple industry challenges of conventional charging sockets.
Looking ahead, Recodeal delivers more than connectivity. We redefine the quality and value of connectivity through systematic innovation. We strive to achieve extreme reliability for every signal transmission and every energy flow. Empowering intelligent upgrading across diverse industries with robust connection solutions, we jointly build a new ecosystem for high-quality development.
