随着全球电动化进程持续提速，便捷出行与共享经济业态蓬勃发展，电动两轮车市场保有量、投放量持续攀升。场景的多元化升级，对车辆充放电连接器的承载性能、适配规格、耐用性及安全性提出了更高标准的要求。在此背景下，中航光电针对共享换电、大功率快充、日常通勤充电等核心场景，打造多品类、全规格的充换电连接器解决方案，凭借成熟的技术经验与可靠的产品性能，全方位适配行业多样化应用需求。
The global electrification drive is accelerating, alongside the booming growth of convenient mobility and sharing economy. The stock and deployment volume of electric two-wheelers keep rising. Diversified application scenarios impose stricter requirements on current capacity, specifications, durability and safety of vehicle charge-discharge connectors. Against this backdrop, JONHON has developed a full portfolio of charge-discharge connector solutions for core scenarios including shared battery swapping, high-power fast charging and daily commuter charging. Backed by proven technical expertise and reliable product performance, our connectors fully meet diverse industry application demands.
产品简介

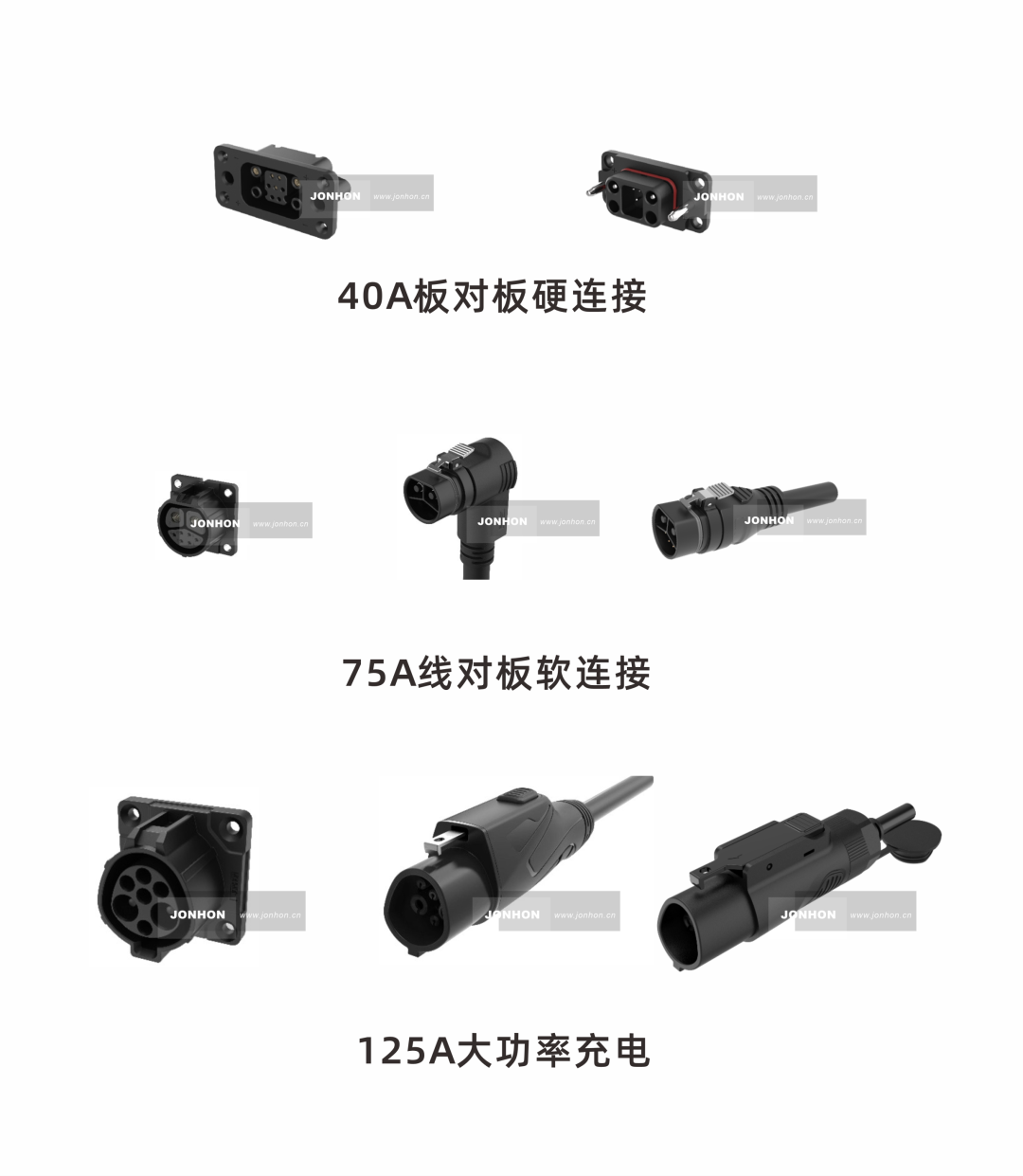

中航光电两轮车充换电连接器全面覆盖助力电动车、共享换电车、电动摩托车等主流车型及全场景应用。产品分为板对板硬连接与线对板软连接两大核心品类，额定电流覆盖15A~125A宽域区间，防护等级可达IP67，支持电源与多路信号一体化集成传输。
JONHON''s electric two-wheeler charge & swap connectors serve mainstream vehicle types including e-bikes, shared battery-swappable vehicles and electric motorcycles for a full range of use cases. The products fall into two core categories: board-to-board hard connection and wire-to-board soft connection. They cover a wide rated current range from 15A to 125A with IP67 protection, supporting integrated transmission of power and multiple signals.
「两轮车充换电连接器」
产品亮点
1.超高插拔寿命，适配高频换电场景
共享换电、日常高频充电场景下，连接器需承受超高频次插拔损耗。中航光电充换电连接器采用精准导向结构设计，搭配高可靠接触件，有效降低插拔磨损，产品使用寿命稳定达到5000~10000次，大幅降低设备更换成本与运维频次，适配商业化高频运营场景。
Ultra-high cycle life
In shared battery swapping and daily high-frequency charging applications, connectors endure repeated mating and unmating. JONHON’s charging & swapping connectors adopt precision guiding structures paired with high-reliability contacts to reduce wear. The product delivers a stable service life of 5,000 to 10,000 cycles, cutting replacement costs and maintenance frequency for commercial high-frequency operations.
2.轻量化紧凑设计，节省安装空间
针对两轮车电池仓空间狭小、结构紧凑的行业痛点，产品采用直式出线、90°弯式出线两种结构形态。可根据不同车型的电池仓布局、布线需求灵活选配，最大化适配狭小安装空间。
Compact lightweight design
To address the industry challenge of limited space inside battery compartments, the product is available in two configurations: straight outlet and 90° outlet. Users can select the proper version based on battery compartment layout and wiring requirements to fit confined installation spaces optimally.
3.高稳抗振防水，适配复杂严苛工况
两轮车行驶路况复杂，颠簸震动频繁，且日常使用中易出现暴力插拔、磕碰等不规范操作。产品采用小晃动量优化设计与复合锁紧结构，可有效防止行驶震动、外力拉扯导致的接口松脱，连接到位感清晰、锁紧稳固。同时搭配成熟防水结构，杜绝防水失效、进水短路等问题。
Stable performance with vibration resistance and waterproofing
Two-wheelers operate on uneven roads with constant vibration and are subject to rough handling such as forced mating and impact. Featuring minimal backlash design and a composite locking structure, the connector prevents loosening caused by vibration or pulling. It provides clear mating confirmation and secure locking. Mature waterproof construction avoids compromised sealing and short circuits due to water ingress.
4.全规格电流覆盖，选型灵活多元
产品搭建全梯度电流规格体系，涵盖15A、20A、40A、75A、100A、125A全区间规格。同时支持2路电源+多路信号一体化集成传输，满足电源传输及监控信号的集成需求。
Wide current range for flexible selection
The product portfolio covers graded current ratings: 15A, 20A, 40A, 75A, 100A and 125A. It supports integrated transmission of 2 power circuits plus multiple signal circuits to fulfill both power delivery and battery monitoring signal requirements.
未来，中航光电将继续深耕电动两轮车赛道，持续优化全电流段产品矩阵，升级产品性能与场景适配能力，助力终端车型实现更安全、更高效、更智能的充换电体验，持续为全球绿色便捷出行产业赋能。
In the future, JONHON will further focus on the electric two-wheeler industry, continuously optimize its full-current product matrix, and upgrade product performance and scenario adaptability, enabling safer, more efficient and smarter charging and battery-swapping experiences for terminal vehicles, and empowering the global green and convenient mobility industry.
